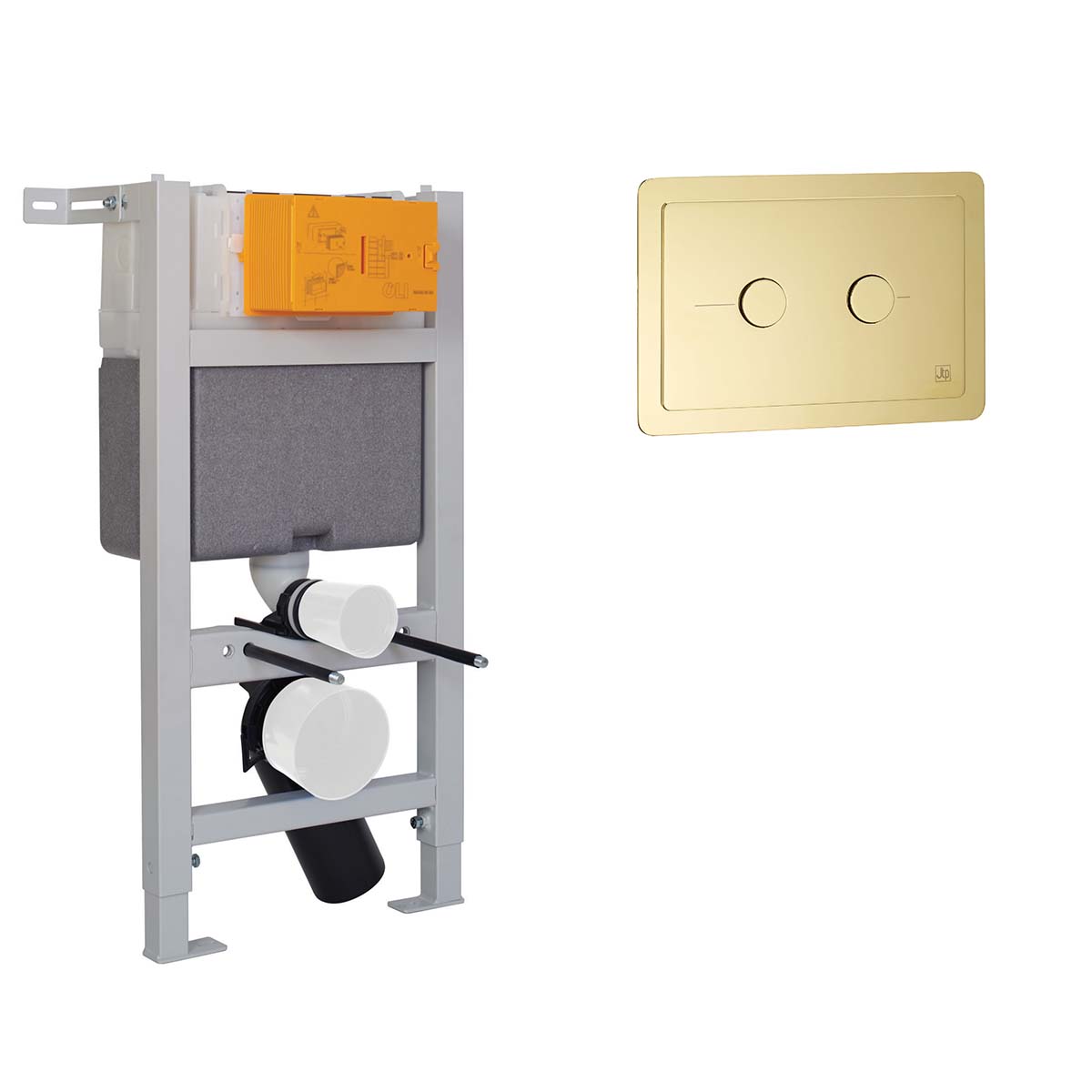

Bring a classic finish to a neat wall-hung WC setup with this concealed wc cistern frame with flush plate. Made for pre-wall installation, it keeps the frame, cistern and pipework hidden behind the completed wall, leaving the toilet pan and polished gold plate as the visible features.

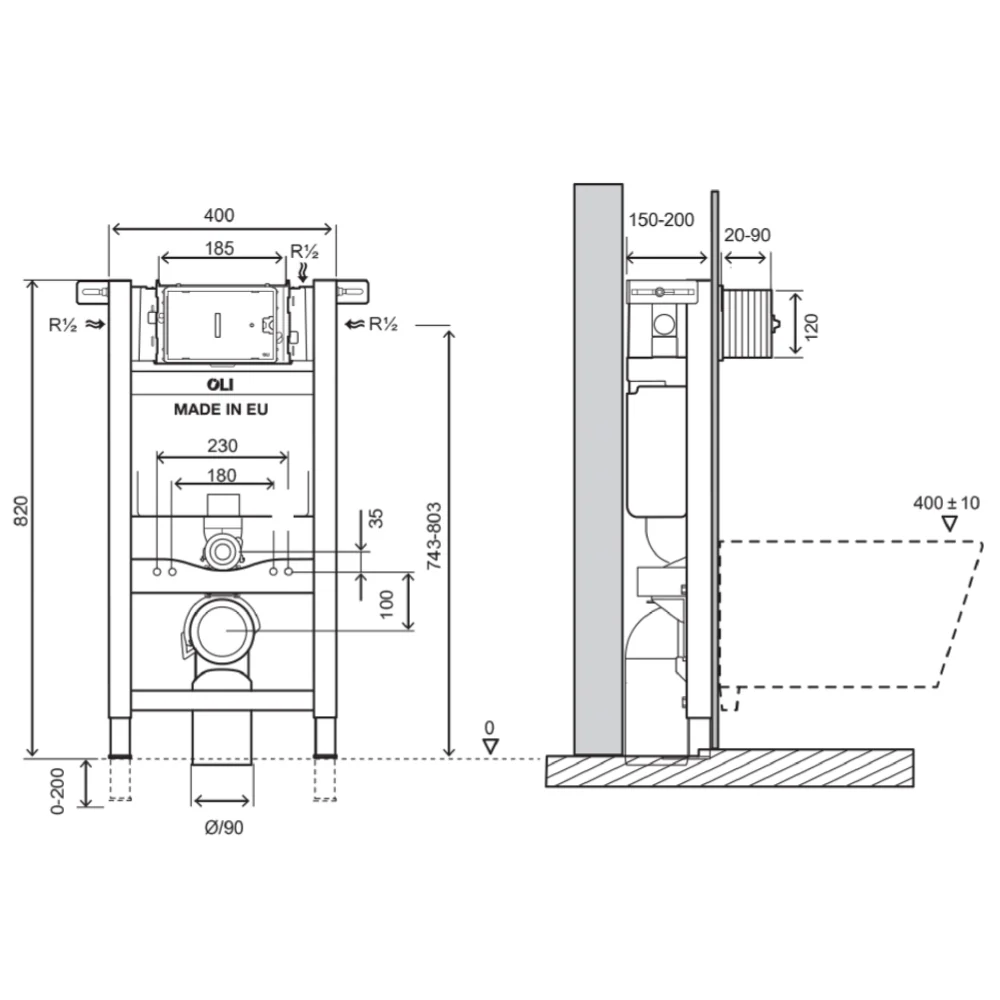

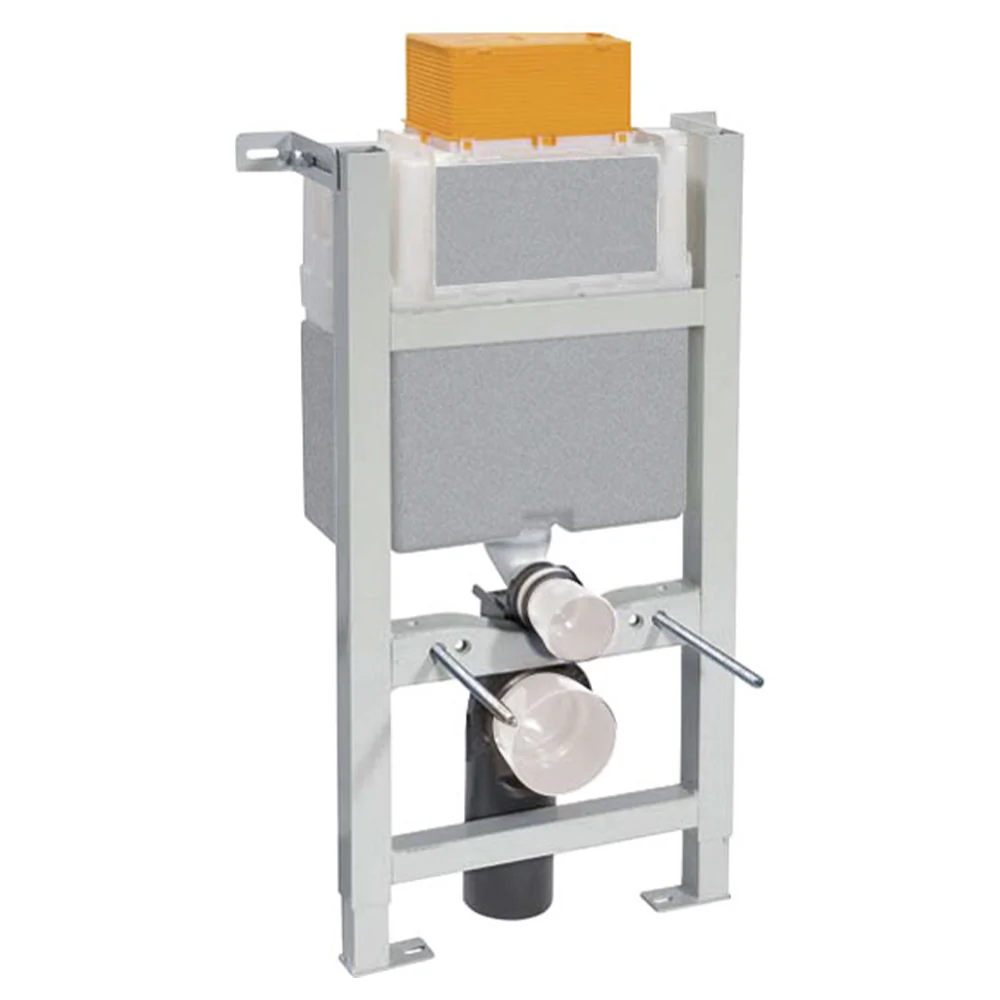

The freestanding WC frame measures 820mm in height and 400mm in width. Made from metal with ABS plastic components, it includes fixing brackets for secure fitting and a WC bend for rear connection to the pan.

The built-in cistern offers a 3/6 litre dual flush, giving the option of a smaller flush for reduced water use or a full flush for stronger performance. Suitable for top or front flush installation, the system adapts to different layouts. The included traditional polished gold flush plate measures 215mm width and 145mm height, with two round buttons using pneumatic operation to activate each flush smoothly through air pressure.

Features & Benefits:

Concealed Cistern:

• Constructed from ABS plastic and metal
• Supplied with WC bend pipe and installation brackets
• 3L/6L dual flush helps manage water usage
• Suitable for top or front flush fitting
• Height: 820mm
• Width: 400mm
• 2-year manufacturer guarantee

Flush Plate:

• Traditional polished gold finish
• Made from durable metal material
• Pneumatic push system provides smooth flushing
• Two-button design allows half or full flush control
• Height: 145mm
• Width: 215mm
• 2-year manufacturer guarantee
