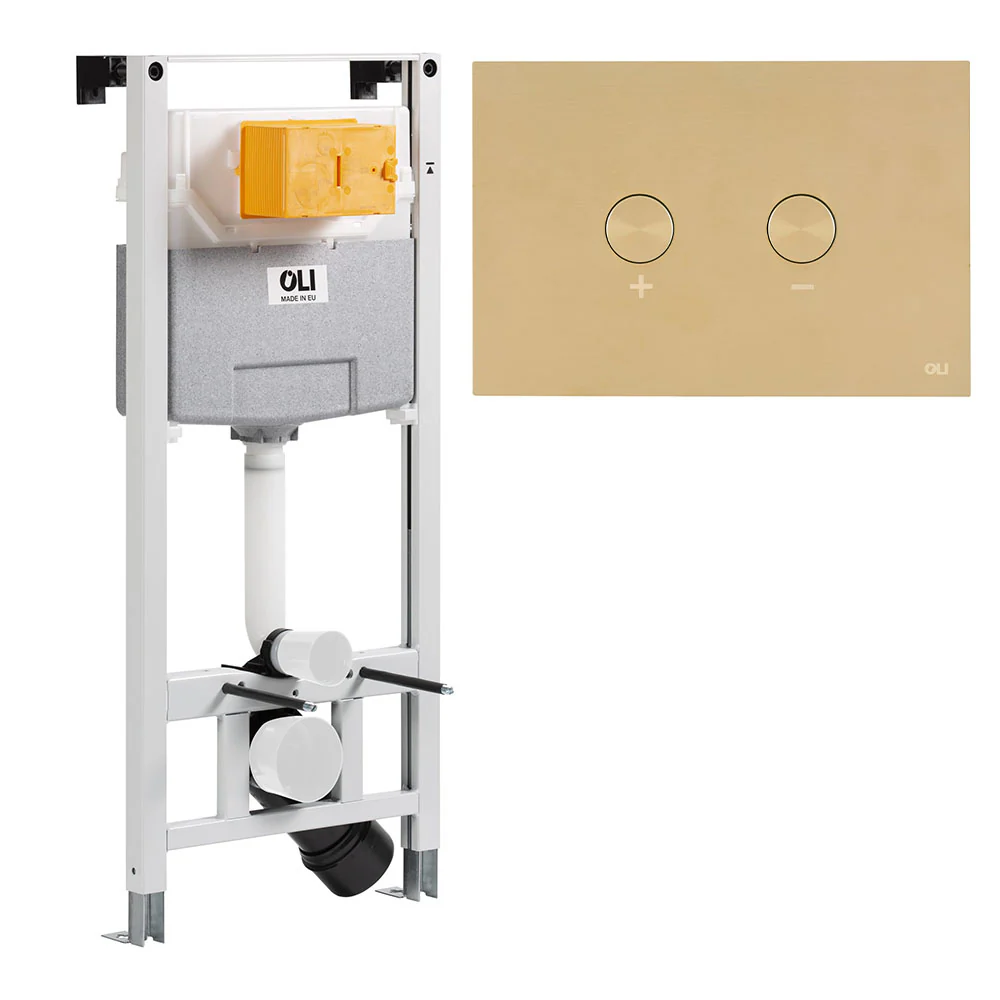

For a clean installation, this concealed cistern and frame combines support, flushing and waste connection behind the finished wall. The pre-wall, freestanding W.C frame measures 1.2m height and 0.50m width, giving a taller concealed structure that keeps the cistern, pipework and fittings out of sight. Supplied brackets help secure the unit during fitting, while the W.C. bend connects the pan to the waste outlet. Designed for front flush installation only, it keeps operation accessible from the front surface, with a 3/6 litre dual-flush system offering controlled water use through reduced and full flush options.

A brushed brass flush plate is included to complete the visible finish with a warm, modern look. Measuring 215mm width and 145mm height, it features two round pneumatic buttons for smooth and simple dual-flush operation, adding a stylish metallic detail while the main working parts remain concealed.

Features & Benefits:

Concealed Cistern and W.C. Frame:

• Strong metal and ABS plastic construction
• Front flush installation only
• Comes with soil pipe and fixing brackets
• 3L/6L flush options support water-saving use

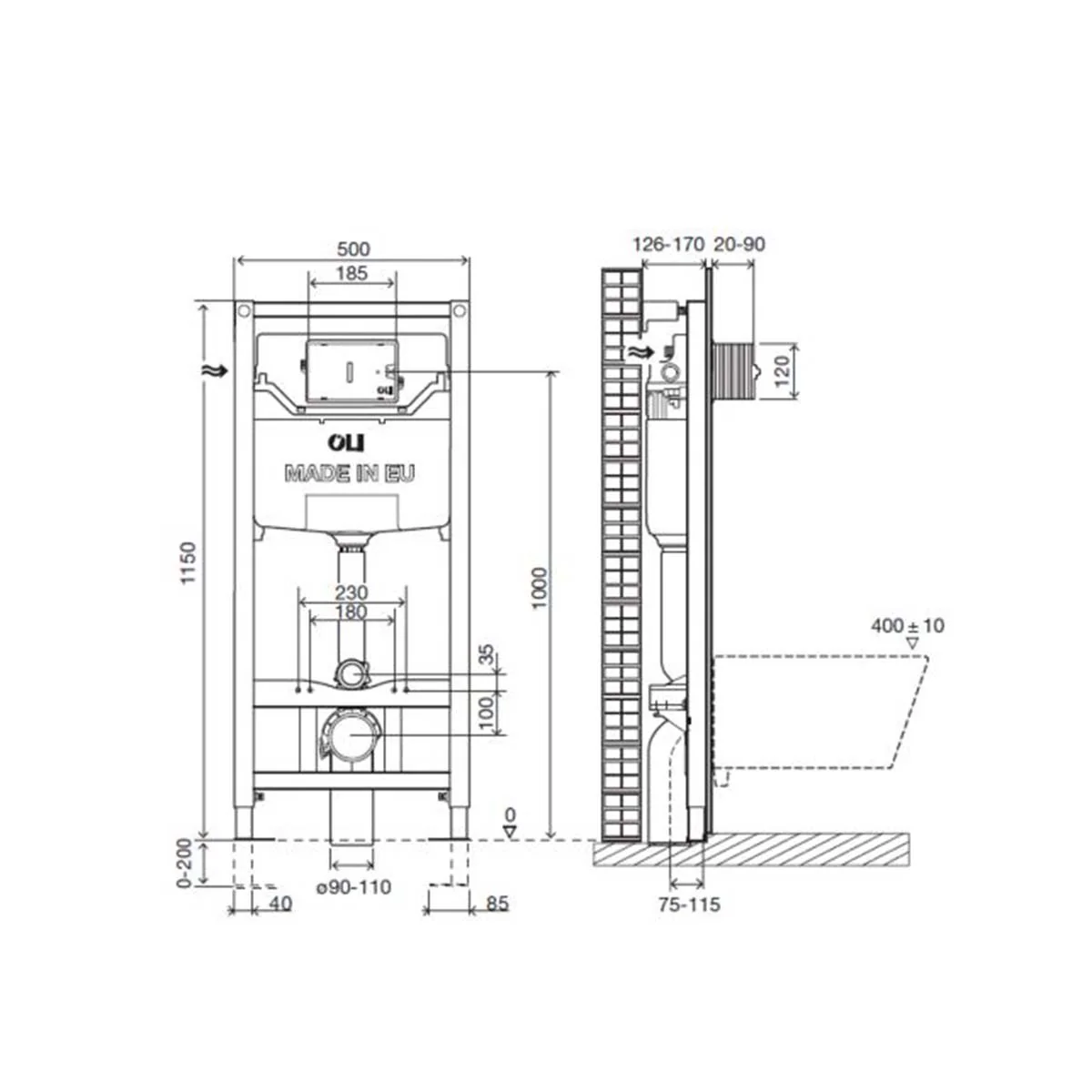

• Height: 1.2m
• Width: 0.50m
• 2-year guarantee, extendable to 5 years after registration

Flush Plate:

• Brushed brass finish with durable metal body
• Pneumatic push system ensures easy flushing
• Twin buttons allow half or full flush
• Height: 145mm
• Width: 215mm
• Supplied with a 2-year manufacturing guarantee
