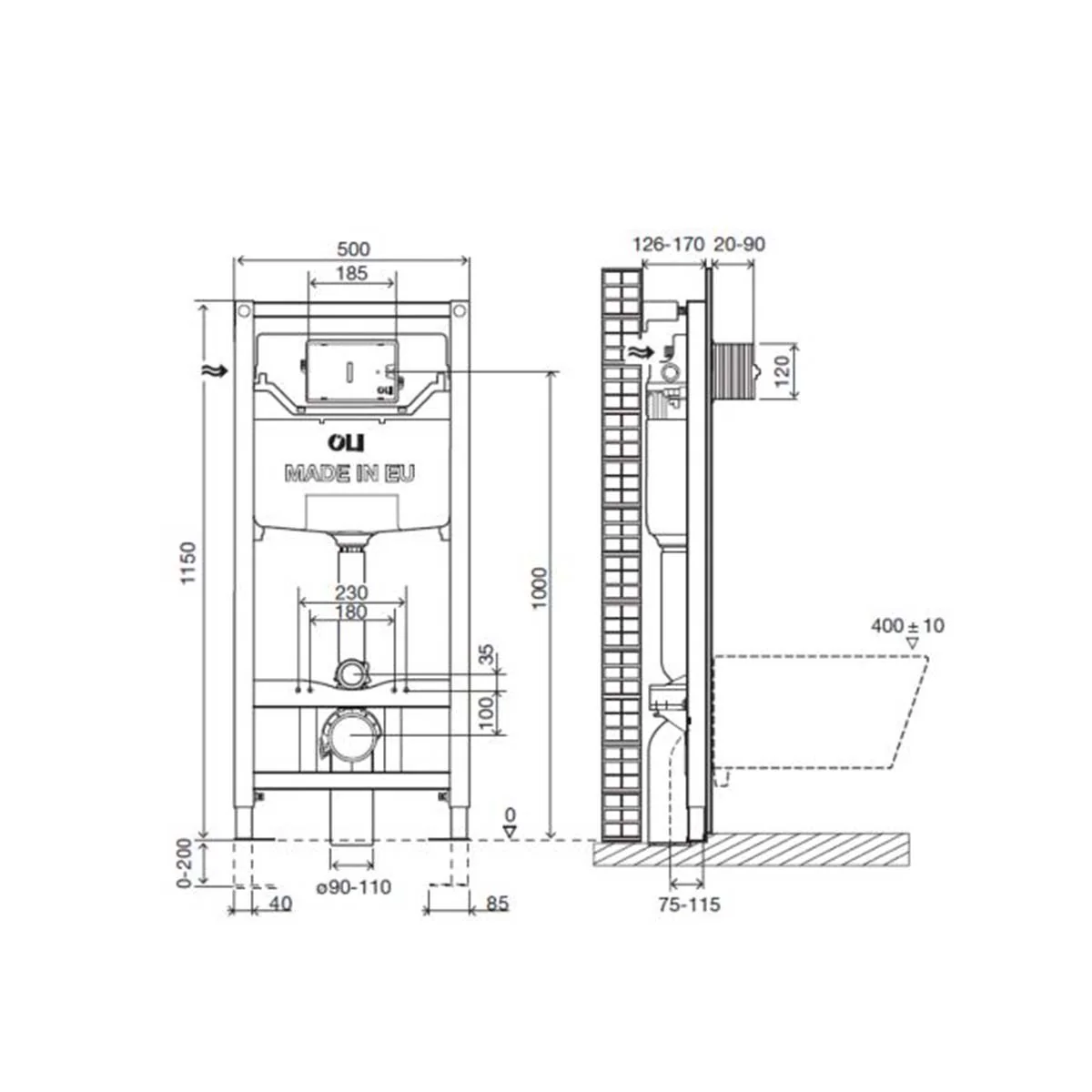

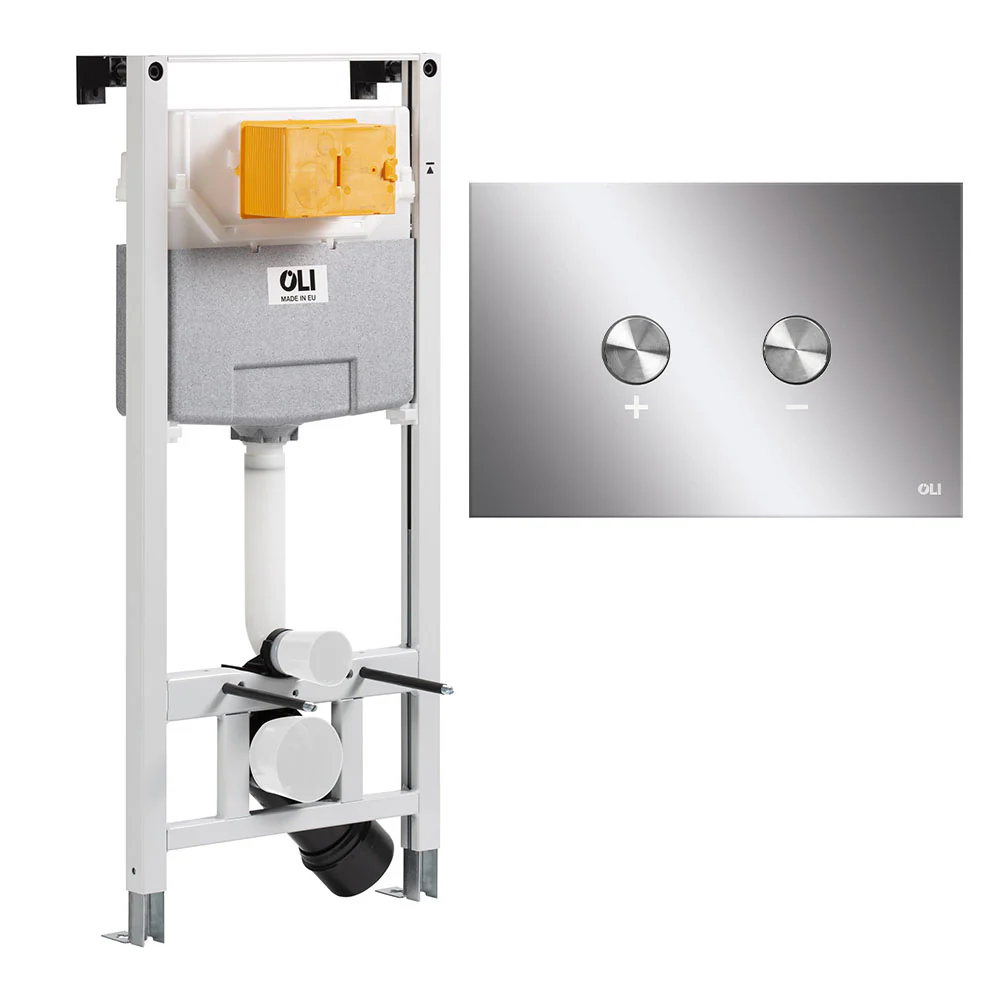

A clean bathroom layout often depends on the parts you do not see. This floor standing toilet WC frame with concealed cistern is designed for pre-wall installation, placing the cistern, pipework and waste connection behind the finished surface for a tidy built-in result. The W.C. frame measures 1.2m in height and 0.50m in width, giving a strong vertical structure for a secure toilet fitting.

Supplied fixing brackets help keep the frame stable during installation, while the included W.C. bend connects the pan neatly to the waste outlet. Once fitted, the frame supports the toilet, the cistern stores water for flushing, and the hidden connections help maintain a cleaner, more organised appearance.

Suitable for front flush installation only, the system uses a 3/6 litre dual-flush function to offer both a reduced water-saving flush and a fuller option when needed. The included modern chrome flush plate measures 215mm width and 145mm height and features two round pneumatic buttons for smooth, simple operation. Its polished finish provides a bright visible detail while the main working parts remain concealed.

Features & Benefits:

Concealed Cistern and W.C. Frame:

• Crafted with metal and ABS plastic
• For front flush installation only
• Comes with soil pipe and fitting brackets
• 3L/6L dual flush supports efficient water use
• Height: 1.2m
• Width: 0.50m
• 2-year guarantee, extendable to 5 years after registration

Flush Plate:

• Chrome finish with strong metal construction
• Pneumatic push system gives smooth flush control
• Two-button design allows half or full flush
• Height: 145mm
• Width: 215mm
• 2-year manufacturing guarantee
