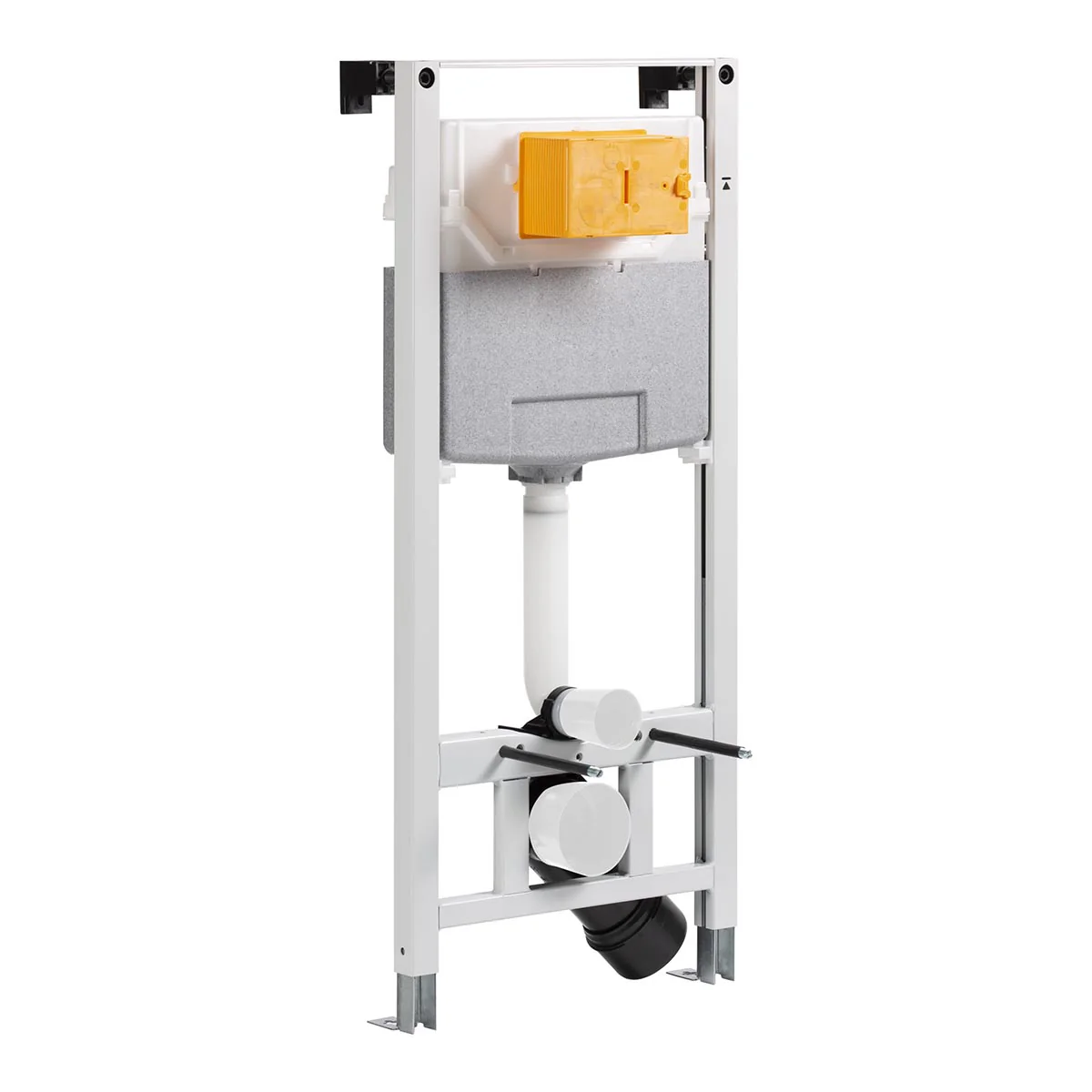

Measuring 1.2m in height and 0.50m width, this floor mounted concealed cistern toilet wc frame is designed as a sturdy pre-wall, freestanding structure for supporting a wall-hung W.C. while keeping the cistern and pipework neatly hidden behind the finished wall. Its strong frame construction helps provide a secure base for everyday bathroom use, with brackets and a W.C. bend included for a more complete installation set-up. Operates with a practical 3/6 litre dual flush, allowing a choice between a reduced or full flush depending on use. It is suitable for front flush installation only, making it perfect where the flush plate is positioned on the front face of the wall or furniture panel.

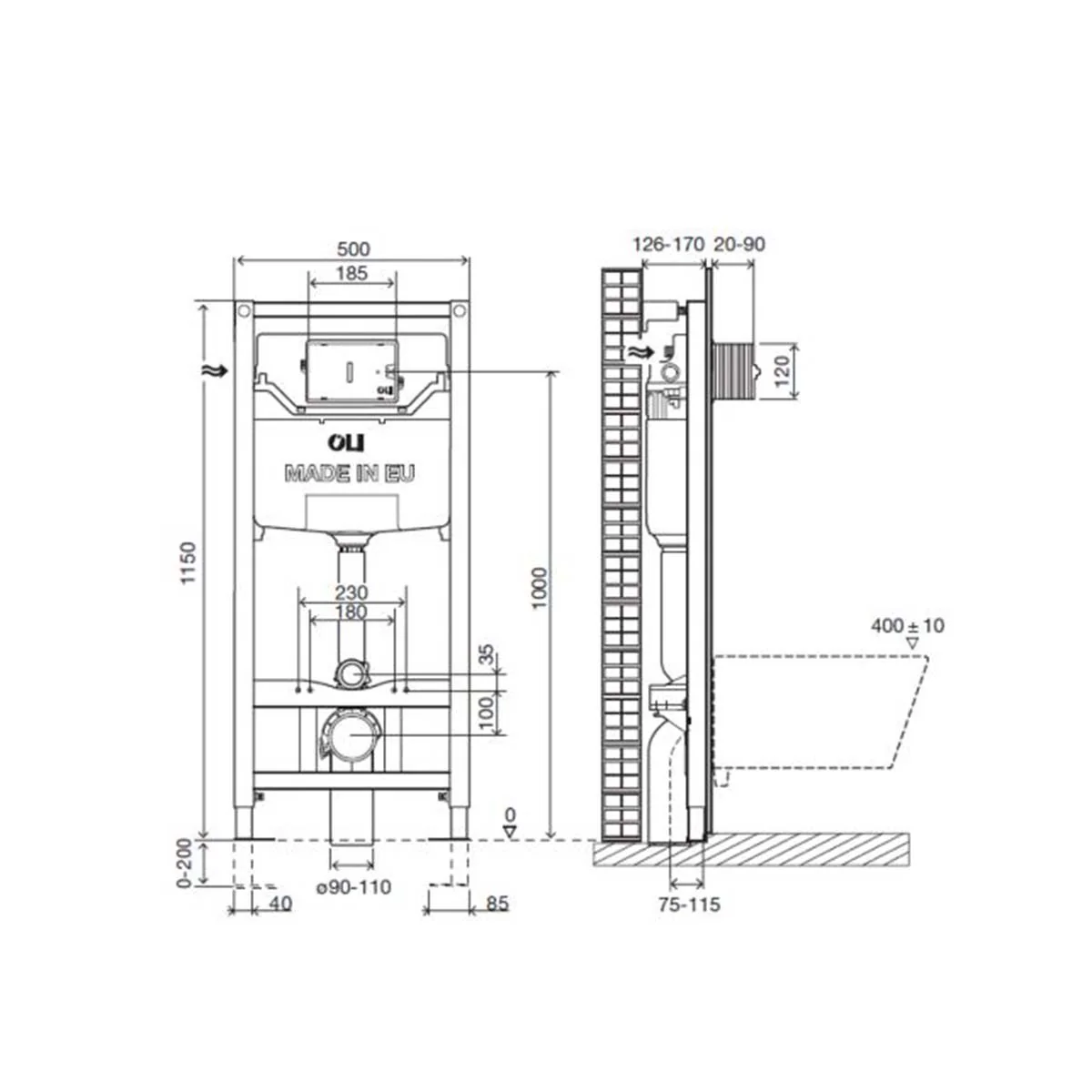

For installation, the frame is positioned before the wall is closed, allowing the cistern, waste connection and support structure to be concealed for a clean, traditional finish. The supplied brushed brass pneumatic flush plate provides two round buttons allowing easy selection between reduced and full flush options, while the pneumatic mechanism supports smooth, responsive operation. Sized at 215mm width by 145mm height, it sits neatly on the wall and adds a refined, well-proportioned detail to the completed bathroom setup.

Features & Benefits:

Concealed Cistern and W.C. Frame:

• Strong metal and ABS plastic construction
• Front flush installation only
• Supplied with soil pipe
• Includes fixing brackets
• 3L/6L dual flush system
• Helps reduce water usage
• Height: 1.2m
• Width: 0.50m
• 2-year guarantee, extendable to 5 years after registration

Flush Plate:

• Traditional brushed brass finish
• Durable metal construction
• Smooth pneumatic push action
• Dual-button flush control
• Supports half or full flush
• Height: 145mm
• Width: 215mm
• 2-year manufacturing guarantee
