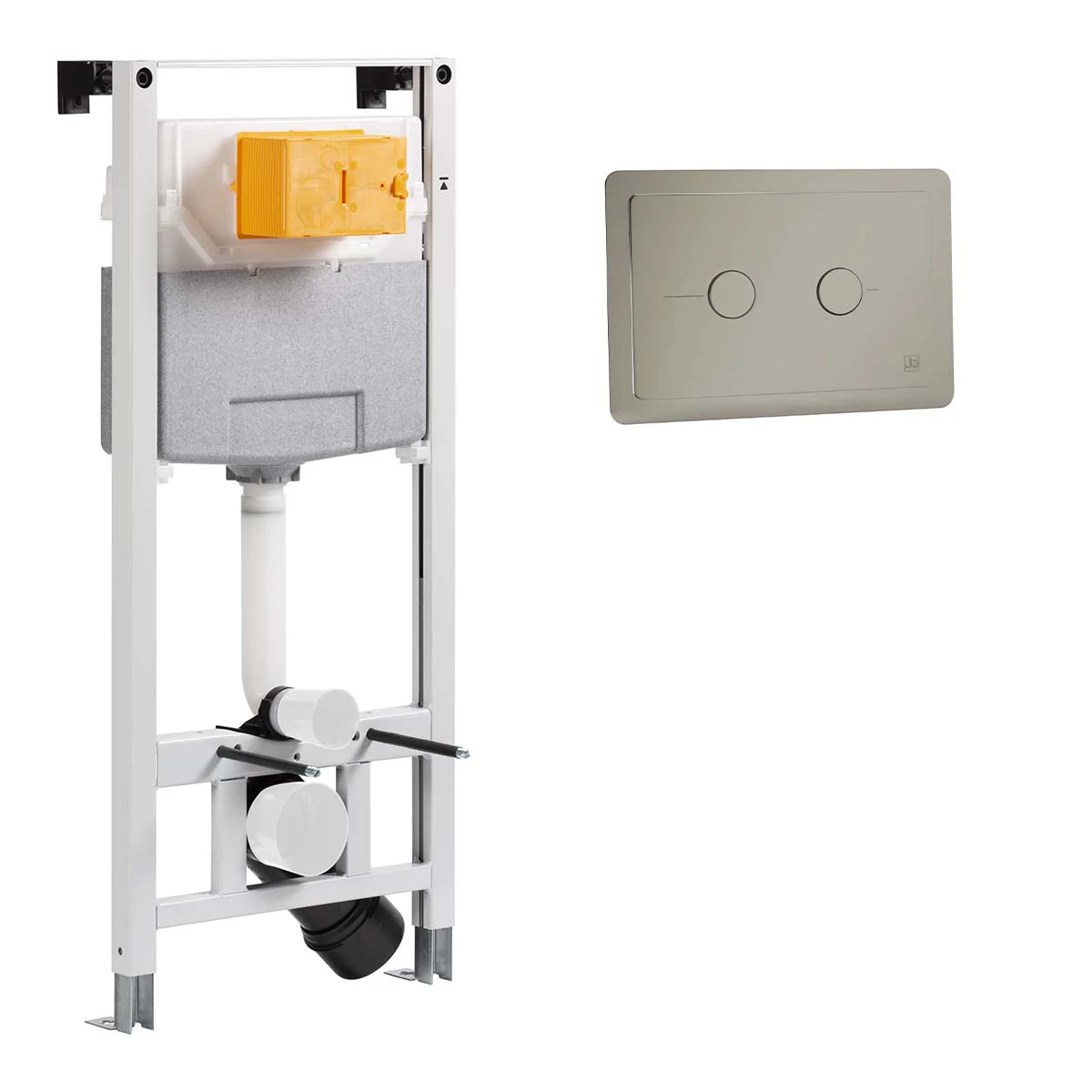

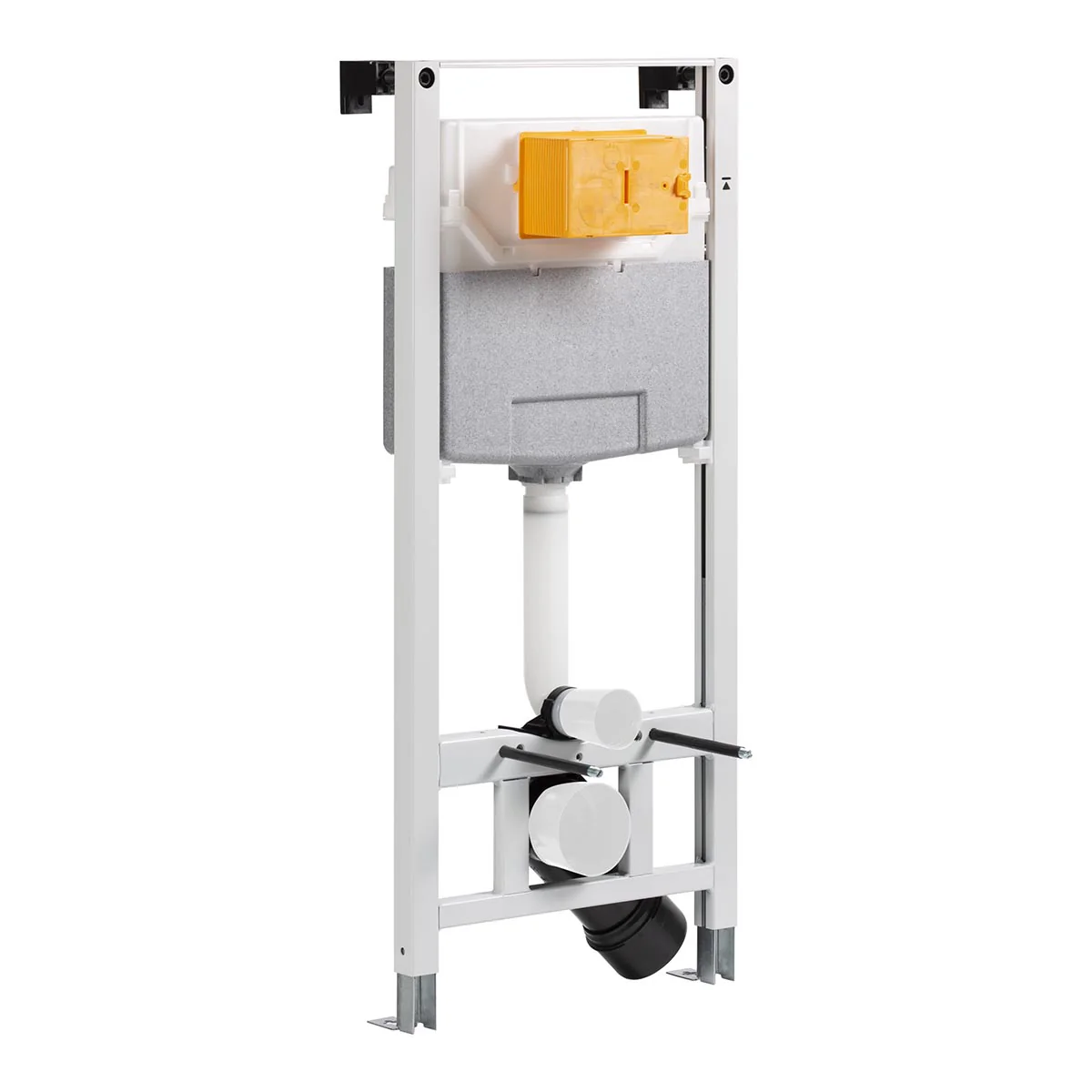

Pre-wall installation with a toilet W.C. frame helps create a cleaner bathroom finish by placing the working components behind the completed wall surface.For fitting, the supplied brackets hold the frame securely in position, while the included W.C. bend links the pan neatly to the waste outlet. As the system is made for front flush installation only, the control plate sits on the front wall face, giving easy access for everyday use without exposing the internal parts. The 3/6 litre dual-flush function provides practical water control, offering a lower-volume flush for lighter use and a full flush when required. This concealed cistern frame measures 1.2m height and 0.50m width, with a freestanding W.C. structure that supports the installation while keeping the cistern, pipework and waste connection discreetly enclosed.

A traditional nickel flush plate is supplied with the unit, measuring 215mm wide by 145mm high. Its two round pneumatic buttons operate the dual-flush system by sending air pressure to the cistern valve, allowing users to choose either a reduced or full flush.

Features & Benefits:

Concealed Cistern and W.C. Frame:

• Durable metal and ABS plastic build
• Front flush fitting only
• Supplied with soil pipe
• Comes with fixing brackets
• 3L/6L dual flush option

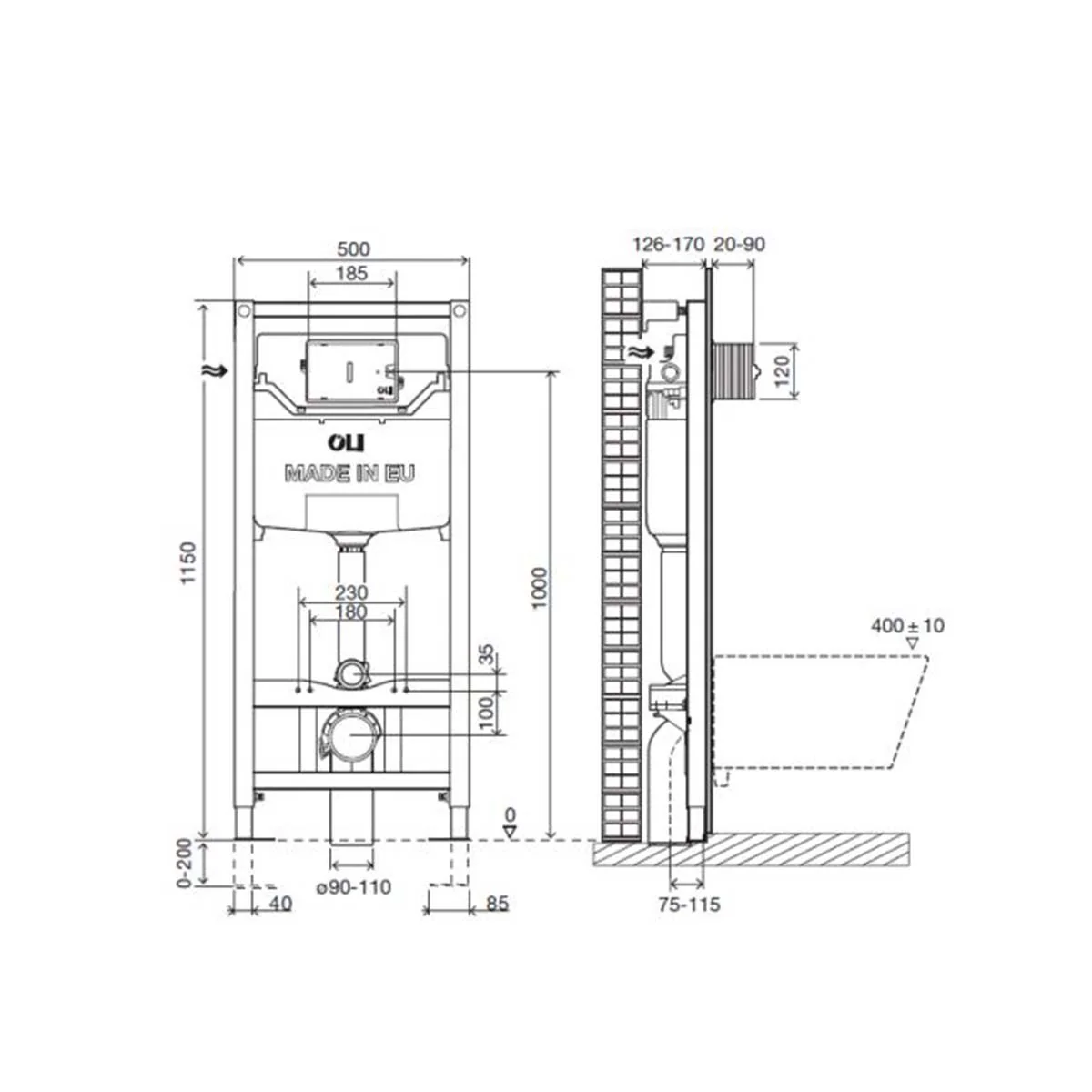

• Height: 1.2m
• Width: 0.50m
• 2-year guarantee
• Extendable to 5 years with registration

Flush Plate:

• Traditional nickel finish
• Strong metal construction
• Smooth pneumatic push operation
• Two-button flush control
• Allows half or full flush
• Height: 145mm
• Width: 215mm
• 2-year manufacturing guarantee
