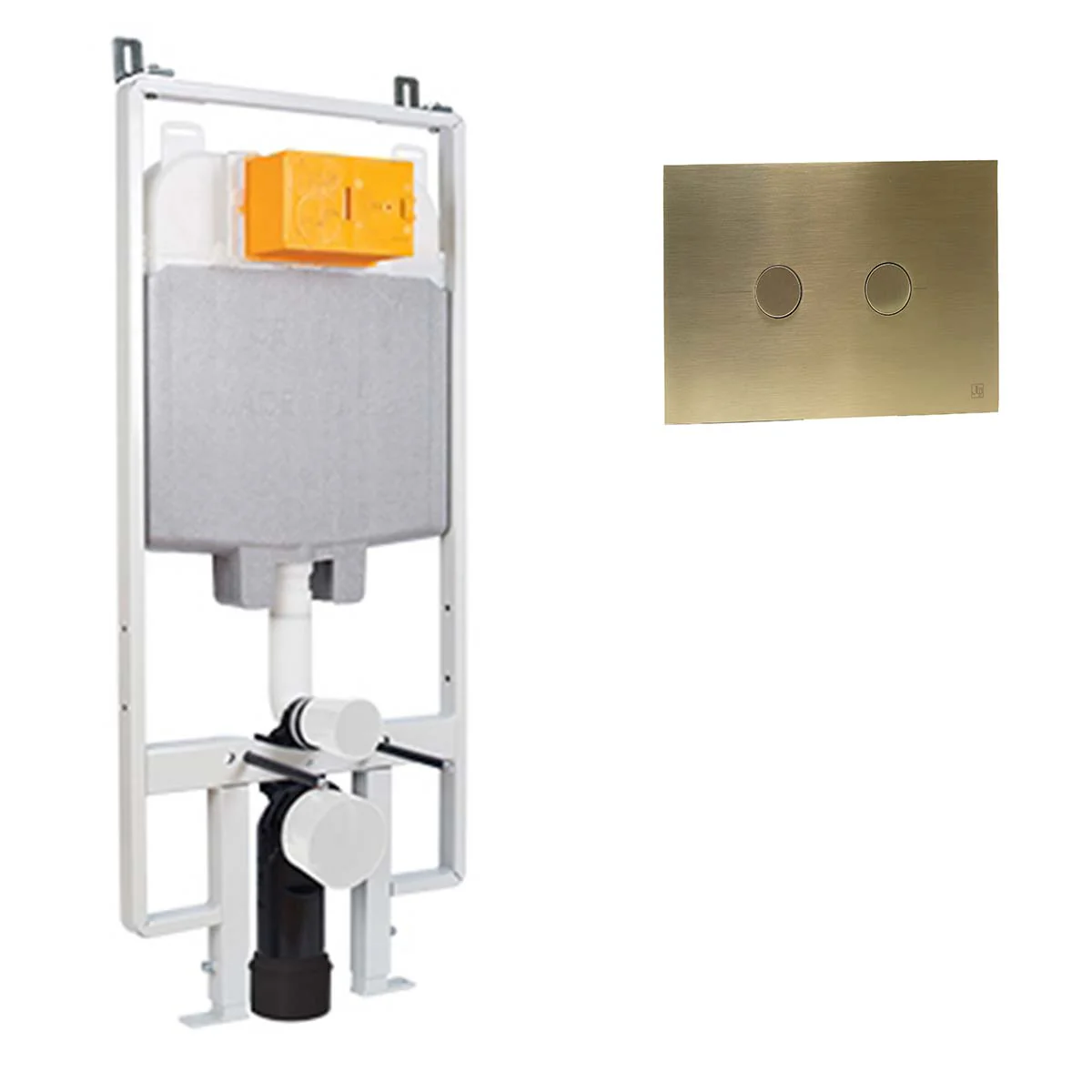

A portrait-style design makes this slim toilet cistern wc frame a practical choice where a narrow, upright concealed setup is needed. With a height of 1.2m and a width of 0.50m, the pre-wall, freestanding metal structure is built to hold the main installation parts behind the finished surface, helping reduce visible pipework and create a cleaner bathroom layout. WRAS approval adds confidence in the flushing unit’s suitability for water supply standards.

For fitting, the frame is supplied with brackets to secure it in position before the wall surface is completed. The included W.C bend sits at the lower section and connects the pan to the waste outlet, helping the whole arrangement work as one enclosed system.Made for front flush installation only, the system keeps operation and access on the front face for convenient daily use and maintenance. The included brushed brass flush plate measures 215mm in width and 145mm in height, with two round pneumatic buttons that use air pressure to control the 3/6 litre flush, offering a reduced water flow or a fuller flush when required.

Features & Benefits:

Concealed Cistern and W.C. Frame:

• Slim concealed frame for a tidy wall-hung setup
• Crafted from strong metal and ABS plastic
• Designed for front flush installation only
• Supplied with soil pipe for convenient fitting
• Includes mounting brackets for secure fixing
• 3L/6L dual flush operation
• Height: 1.2m
• Width: 0.50m
• 2-year guarantee included it, can be extended to 5 years after registration

Flush Plate:

• Durable metal with brushed brass finish
• Pneumatic push action for smooth flushing
• Two-button design for half or full flush
• Height: 145mm
• Width: 215mm
• Includes a 2-year manufacturing guarantee
